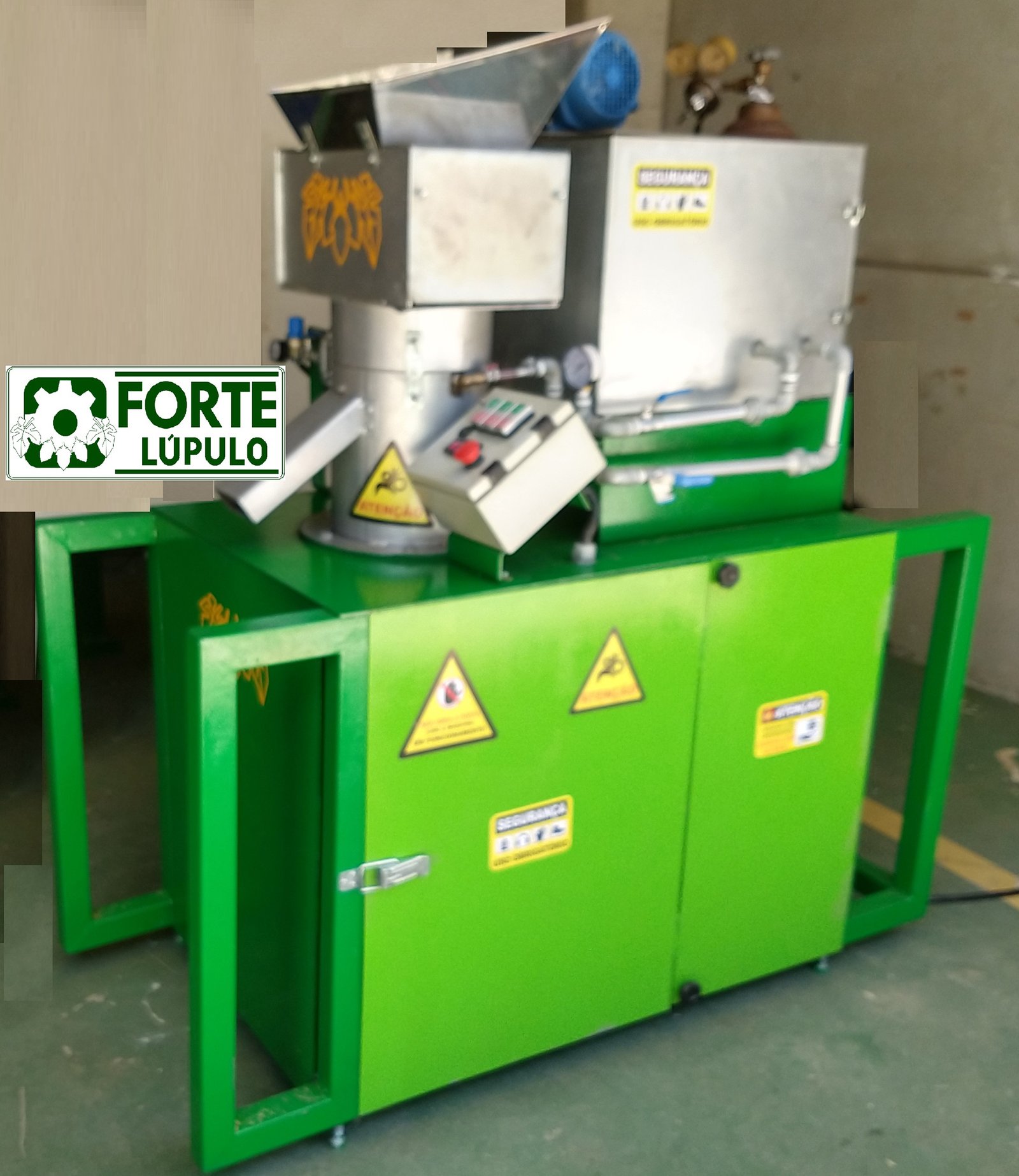

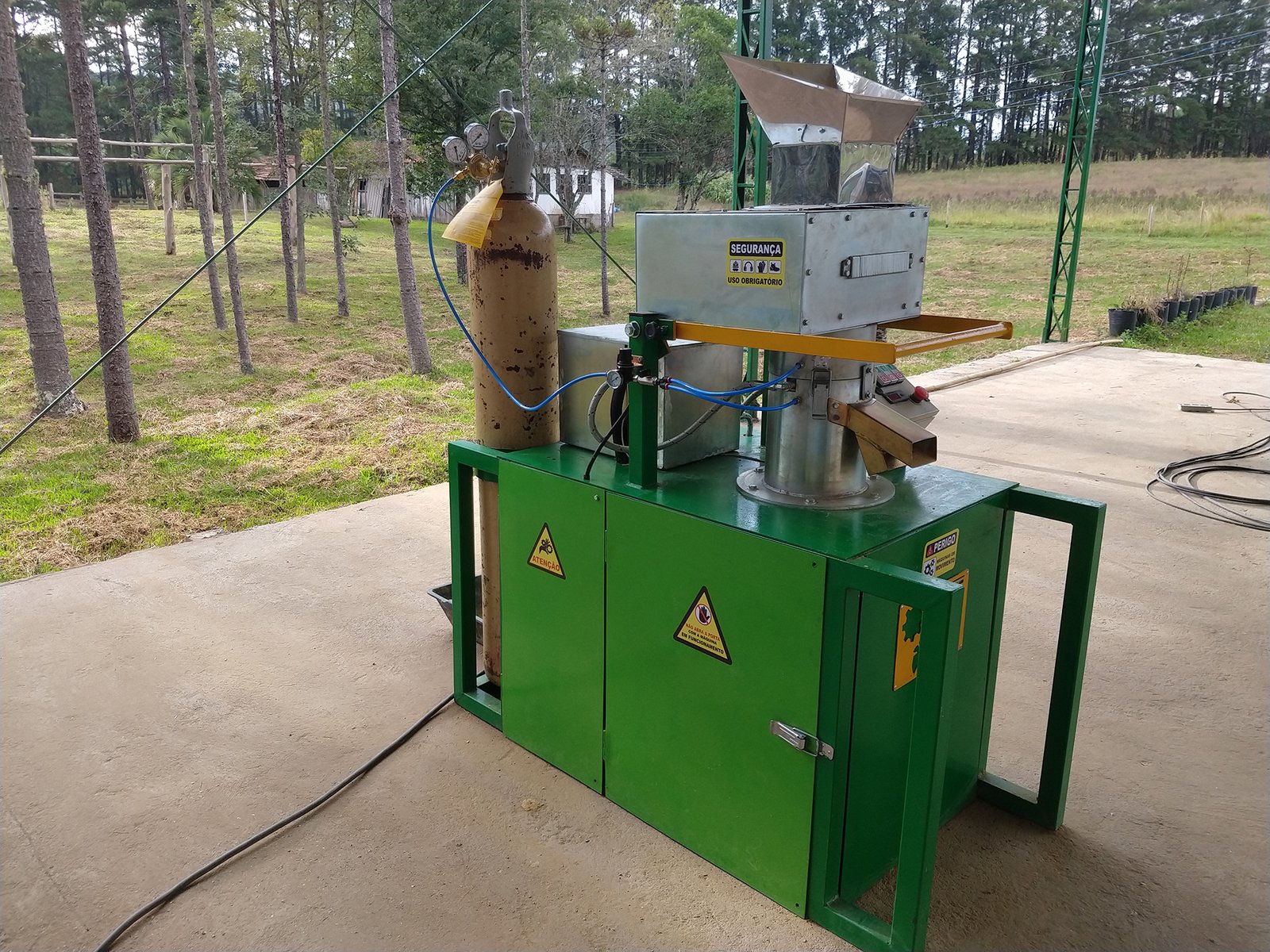

HOPS PELLETIZER– PEL-20

HOPS PELLETIZER– PEL-20

Model: PEL-20
Production: 20kg/h (44.09 lb/h)
NCM: 8437

Set of 02 road rollers
Grooved solid rotary rollers and double cooled flat table (die),
Better distribution of raw material to be pelletized.
With an internal scraper to remove material from the pellet mill.
Chopped hops compactor in grains of diameter 6mm.
Internal chiller circuit, serpentine heat exchanger in water reservoir and coolant additive, galvanized reservoir, thermally insulated.
Water pump for circulation and cooling of the table.

Reduced peripheral speed;
transmission via pulleys located below the pressing system;
Ease of maintenance;
7.5 horsepower motor
die with holes of 6,0 diameter;
Three phase 220V supply voltage.

Differentials:
Refrigerated compaction die, for cold compaction of hops not to degrade essential oils.
Circulation in cooling circuit and reservoir.

INERT GAS REGULATOR

Inert gas inlet for compaction in the compression chamber and in the hops extraction chamber, to decrease the oxygen in the pellets and decrease the oxidation of the pellets in the vacuum bag.
Recommended for storage in long periods and special hops
uses Argon gas cylinder
